What Makes Graphite Design Tour AD Shafts Different?
Graphite Design designs and manufactures every Tour AD shaft in its own factory in Japan, with no outsourcing. That single-factory process helps ensure stronger quality control, better consistency, and more repeatable launch and spin performance during fitting.

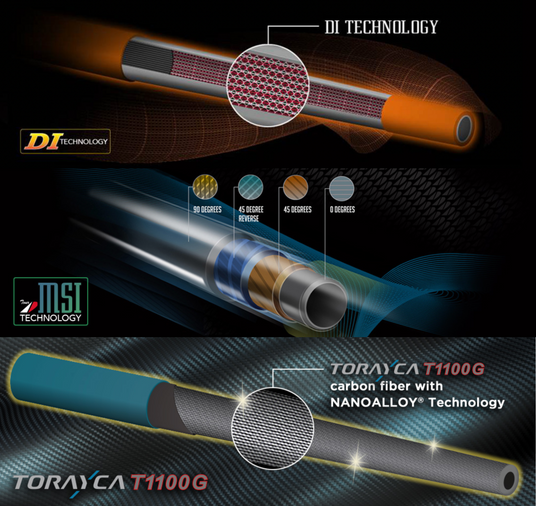

The Tour AD family is built around three core technologies that appear across different models:
TORAYCA® T1100G Carbon Fiber — An ultra-high modulus aerospace-grade carbon fiber used in the mid-to-tip sections of VF and other high-stability models. T1100G provides extreme stiffness per unit of weight, which translates directly into tip stability and tight dispersion at impact.
NANOALLOY® Technology (via Toray) — A proprietary material technology integrated into the tip section of Tour AD DI shafts. NANOALLOY® increases tip stability and feel without adding mass, allowing the shaft to remain stable through impact while still giving the player feedback. This is what makes the DI feel more connected than many other tour-level shafts.
MSI — Material Stiffness Integration — Graphite Design's proprietary design philosophy that maps specific materials to specific shaft zones based on how each zone behaves during the swing. Rather than using one material throughout and varying the layup, MSI matches materials to the mechanical demands of each section — butt, mid, and tip — independently.
Tour AD Models — Quick Overview
Each Tour AD model is built around a different performance objective. Use these cards to identify which model aligns with your launch and spin needs before reading the full breakdown below.
Tour AD DI
Driver · Fairway · Hybrid
Tour AD VF
Driver · Fairway · Hybrid · Utility
Tour AD TP
Driver · Fairway
Tour AD IZ
Driver · Fairway · Hybrid
Tour AD UB
Driver · Fairway
Tour AD Iron Series
Iron · Utility Iron
Tour AD Driver Shaft — Side by Side Comparison
Every current Tour AD driver model compared by launch, spin, tip profile, and player fit. For individual model specs and full flex/weight options, visit the collection or product page for each model.
| Model | Launch | Spin | Tip Profile | Key Technology | Best Player Fit |
|---|---|---|---|---|---|
| Tour AD VF | Low–Mid | Low | Very Stiff | TORAYCA® M40X butt + T1100G mid-tip | Fast-tempo, high swing speed; wants a flat, penetrating flight with maximum stability |
| Tour AD DI | Mid–High | Low–Mid | Stiff | NANOALLOY® tip; MSI design | Most versatile Tour AD — works across a wide range of swing types; best starting point for most players |
| Tour AD UB | Mid | Low–Mid | Stiff | MSI design | Mid-launch players wanting Tour AD consistency at a versatile profile; broad swing speed range |
| Tour AD IZ | High | Low | Stiff | MSI design; optimized for high-launch/low-spin combination | Players who need more carry height without trading away spin control; under-launched ball flights |

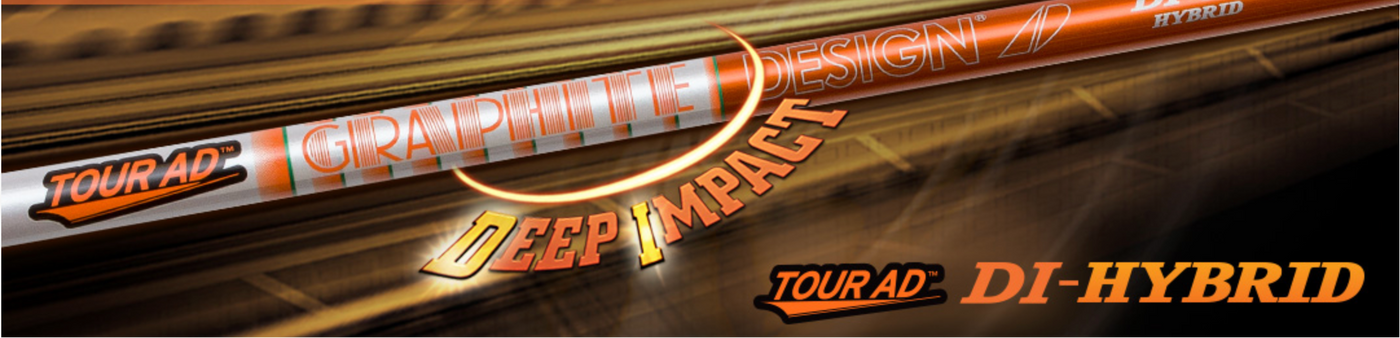

Tour AD DI — Deep Impact
The Tour AD DI is the most versatile shaft in the Graphite Design lineup and the model most fitters reach for first when evaluating a player for Tour AD. Its mid-to-high launch and low-to-mid spin profile covers the widest range of swing types without pushing the ball flight in any extreme direction.
What separates the DI from other Tour AD models is its NANOALLOY® tip construction — a Toray-developed material that adds stability and feel to the tip section without adding weight. The result is a shaft that remains stable at impact, resists ovalization and twist during the downswing, and still delivers exceptional feel feedback to the player. If you play a stock shaft or a mid-tier premium shaft and want to understand what Tour AD performs like, the DI is the right introduction.
The DI is available in driver, fairway, and hybrid configurations with weight options from 50g through 90g, covering swing speeds from slower amateurs all the way through tour-level.
Browse the full Tour AD DI collection including raw and assembled options.

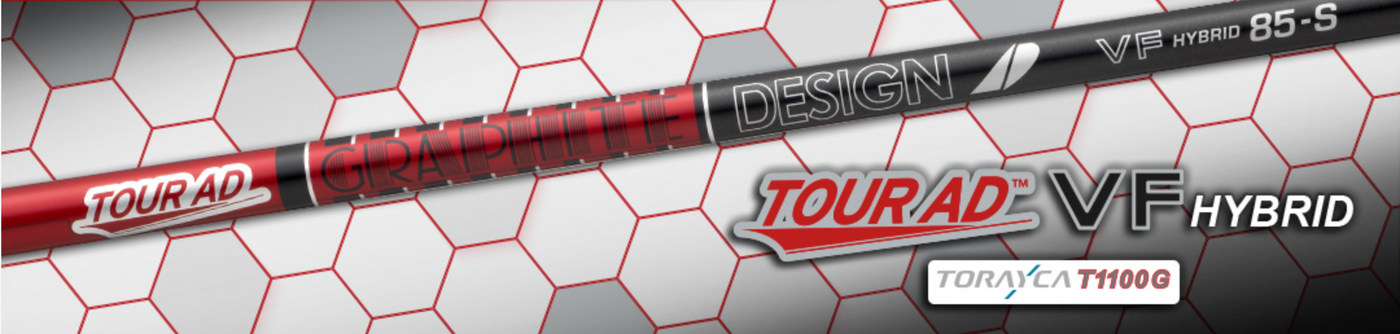

Tour AD VF — Victory Force
The Tour AD VF is Graphite Design's answer for players who need maximum stability and a flatter, more penetrating ball flight. It sits at the lower end of the Tour AD launch spectrum — low-to-mid launch with low spin — and uses the most advanced materials in the current Tour AD lineup.
The VF's butt section uses TORAYCA® M40X, which provides a smooth, stable load during the backswing. The mid through tip sections use TORAYCA® T1100G — an ultra-high modulus carbon fiber that creates an extremely stable, firm tip profile classified as Very Stiff. This combination is what produces the VF's signature characteristic: exceptional control over shot shape and ball flight, with a feel that is firm but never harsh.
The VF is the right shaft if you generate significant spin naturally, swing aggressively, and want a Tour AD that keeps your numbers in check rather than amplifying them. It's also available as a Utility Driving Iron variant (Tour AD VF UT) for players building a driving iron with a matching bend profile to the VF wood shaft.
Browse the full Tour AD VF Collection, including assembled driver options and the VF Utility Iron variant.

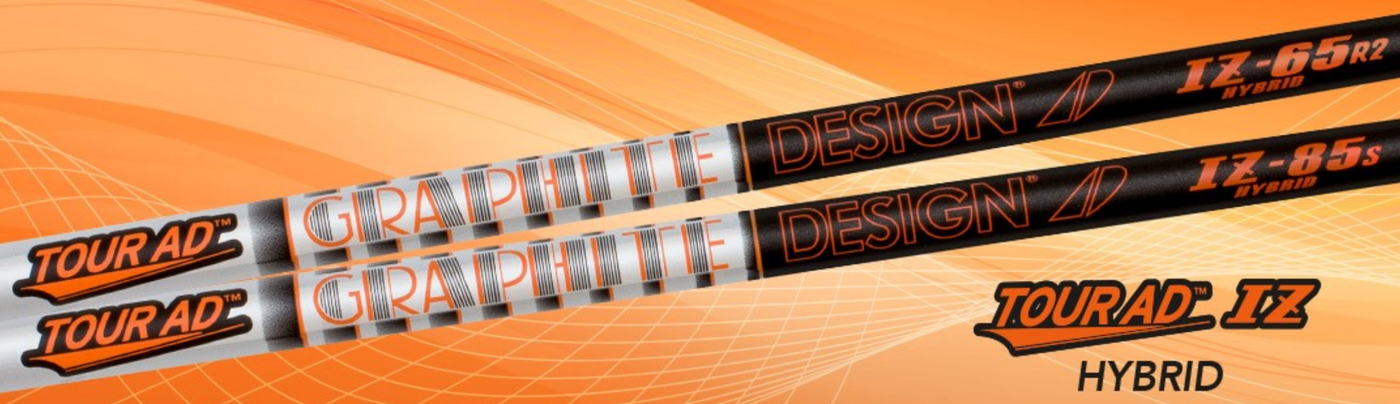

Tour AD IZ — High Launch, Low Spin
The Tour AD IZ solves a specific problem: players who consistently struggle to get the ball high enough to maximize carry, but don't want to trade away the spin control that Tour AD is known for. Most shafts that produce high launch also produce elevated spin. The IZ is engineered to deliver high launch while keeping spin rates low — a combination that produces longer carry with a ball flight that still descends on a controlled angle.
If a fitter has told you your launch angle is too low and your carry numbers are disappointing, the IZ is the Tour AD model built specifically for that diagnosis. It's the highest-launching shaft in the current driver lineup and fills the role that typically requires players to move to a softer tip or significantly lighter shaft — but without giving up the stability and precision that Tour AD provides.
Browse the full Tour AD collection for Tour AD IZ options.
Tour AD Iron & Utility Shaft Series
Graphite Design's Tour AD Iron Series brings the same Japan-manufactured quality and MSI design philosophy into iron and utility iron configurations. The iron lineup covers a wide weight range — from 50 grams for slower swing speeds and senior players, up to 115 grams for tour-level ball strikers looking for a graphite alternative to heavy steel.
Lighter Tour AD iron models (50g–65g) use a low-to-low/mid kick point and are designed for higher ball flight and more spin — suited for players who need help getting irons airborne. Mid-weight models (65g–85g) feature a mid kick point for a mid-to-mid/high flight. Heavier models (95g–115g) sit at a mid-high kick point and produce a lower, more piercing iron trajectory with lower spin — overlapping in feel with what better players expect from steel.

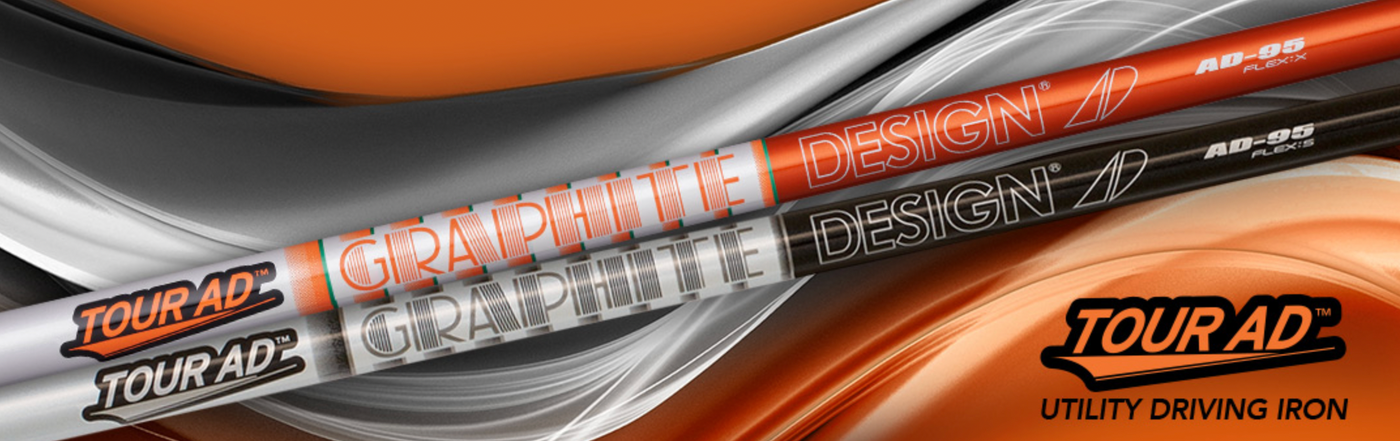

For utility and driving iron applications, Graphite Design produces the Tour AD UT series — including the Tour AD UT 85, UT 95, and the Tour AD VF Utility Driving Iron — all designed to match the bend profile of their wood-shaft counterparts for consistent feel across the full bag.
Shop all Graphite Design iron and utility shafts at Grips4Less.
Which Tour AD Is Right for You?
Find your player profile below for a direct recommendation.
Fast Swing / High Spin (105+ mph)
Tour AD VF
If you generate a lot of spin naturally and want a flat, penetrating ball flight with maximum tip stability, the VF's Very Stiff tip and T1100G construction is the right call.
Shop Tour AD VF →All-Around / First Tour AD (90–105 mph)
Tour AD DI
The DI is the most versatile model in the lineup and the right starting point for most players. Mid-high launch, low-mid spin, NANOALLOY® tip stability — it works across the widest range of swing types.
Shop Tour AD DI →Mid-High Launch / Tight Spin Control
Tour AD TP
If you want the DI's launch window but with lower spin and a more active, lively feel through impact, the TP's Fast Taper Technology delivers a more explosive response without changing the launch position.
Shop Tour AD TP →Under-Launched / Needs More Carry
Tour AD IZ
The IZ produces the highest launch in the Tour AD driver lineup while keeping spin rates low — designed specifically for players who consistently under-launch but don't want to sacrifice spin control to fix it.
Shop Tour AD IZ →Versatile Mid-Launch (85–100 mph)
Tour AD UB
The UB covers a broad mid-launch window with low-to-mid spin and is a strong option for players who want Tour AD quality and consistency at a profile that doesn't push their ball flight in any extreme direction.
Shop Tour AD UB →Iron Shaft Upgrade — Graphite
Tour AD Iron Series
From 50g for senior swing speeds to 115g for tour-level ball strikers, the Tour AD Iron Series brings Japan-manufactured graphite iron performance across the full weight spectrum. Same MSI technology as the wood series.
Shop Tour AD Irons →Get It Built and Ready to Play
As a Top Authorized Graphite Design Dealer every Tour AD driver and fairway shaft available at Grips4Less can be ordered assembled — built in-house with your choice of adapter tip and grip, and ready to install directly into your driver or fairway wood. No installation required. Compatible adapters include TaylorMade, Callaway, Titleist, Cobra, Ping, and Mizuno.
In-stock assembled shafts ship same day when ordered before 5pm ET.
Browse all Assembled Graphite Design Tour AD shafts with adapter tip and grip installed. Also check out our Full Collection of Graphite Design Shafts
Frequently Asked Questions
What is the difference between Tour AD DI and Tour AD TP?
What is the difference between Tour AD DI and Tour AD TP?
Both the Tour AD DI and Tour AD TP produce mid-to-high launch, but they differ in feel and spin. The DI uses NANOALLOY® technology for a stable, connected feel at impact with low-to-mid spin. The TP uses FFT — Fast Taper Technology — which creates a faster taper from the lower mid-section to the tip, producing a more explosive, active feel with slightly lower spin than the DI. If the DI feels a little smooth and planted for you, the TP offers more feedback and snap without meaningfully changing your launch window.
What is TORAYCA® T1100G carbon fiber and why does it matter in a golf shaft?
What is TORAYCA® T1100G carbon fiber and why does it matter in a golf shaft?
TORAYCA® T1100G is an ultra-high modulus carbon fiber developed by Toray Industries — the same grade of material used in aerospace structural applications. In a golf shaft, it provides an extreme level of stiffness per unit of weight. Graphite Design uses T1100G in the mid-to-tip sections of Tour AD VF shafts, which creates a Very Stiff tip profile that minimizes shaft ovalization and twist during the downswing. The practical result is tighter shot dispersion and more consistent face angle at impact, particularly in fast-swing players where less stable shafts tend to open or close through the hitting zone.
Should I play the Tour AD VF or Tour AD DI if I have a fast tempo?
Should I play the Tour AD VF or Tour AD DI if I have a fast tempo?
Tempo and swing speed are two different things, but both matter here. If you have a fast, aggressive transition — where you load the shaft hard at the top and fire through quickly — the Tour AD VF's stiffer handle and Very Stiff tip will respond better and stay more stable through impact. The DI has a slightly softer overall profile that can feel unstable in very aggressive transitions. Fast tempo paired with high swing speed (105+ mph) is a strong indicator for the VF; fast tempo with moderate swing speed (90–100 mph) typically still fits better in the DI, just in a heavier weight class like the 70g S or 70g X.
What is MSI — Material Stiffness Integration — in Graphite Design shafts?
What is MSI — Material Stiffness Integration — in Graphite Design shafts?
MSI, or Material Stiffness Integration, is Graphite Design's proprietary design philosophy that treats each section of the shaft — butt, mid, and tip — as an independent zone with its own material requirements. Rather than using one carbon fiber material throughout and adjusting stiffness purely through layup design, MSI selects the specific material best suited to the mechanical demands of each section. The butt section might use M40X for smooth loading, while the tip uses T1100G for maximum stability. This approach allows Graphite Design to tune feel, load, and tip behavior independently, which is why Tour AD shafts can feel both smooth in the hands and extremely stable at impact simultaneously.
How do I choose between the Tour AD DI and Tour AD IZ if my launch is borderline?
How do I choose between the Tour AD DI and Tour AD IZ if my launch is borderline?
If your launch numbers from a fitting session are sitting at the low end of optimal — typically under 12° with a driver at moderate swing speeds — the IZ is worth testing. The IZ is specifically engineered to add launch without adding spin, which is the combination that closes the gap between actual and optimal carry. If your launch is already in the mid-optimal range and your issue is more about dispersion or spin than carry, the DI is the better fit. A good benchmark: if your fitter is suggesting more dynamic loft or a higher-lofted driver head to fix your carry numbers, the Tour AD IZ solves that problem at the shaft level first.
Can Tour AD shafts be used in fairway woods and hybrids, or only drivers?
Can Tour AD shafts be used in fairway woods and hybrids, or only drivers?
Tour AD shafts are manufactured for driver, fairway wood, and hybrid applications across most models. The DI, VF, TP, IZ, and UB are all available in fairway and hybrid configurations as well as driver. The Tour AD VF also has a Utility Driving Iron variant — the Tour AD UT VF — designed specifically for utility and driving iron builds. Players who want a consistent feel profile across driver, fairway, and utility iron can build an entire bag architecture using Tour AD shafts with matching bend profiles from one model family.
How does Tour AD perform compared to Fujikura Ventus or Mitsubishi Diamana?
How does Tour AD perform compared to Fujikura Ventus or Mitsubishi Diamana?
All three are premium tour-level shaft families with strong professional tour validation, but they have distinct feel profiles. Ventus (with VeloCore technology) is engineered primarily around torsional stability and tight dispersion — it has a firm, planted feel. Diamana is known for its smooth, classical feel with consistent flex profiles across weight classes. Tour AD sits between the two in terms of feel character — it delivers stability comparable to Ventus but with a slightly more active, feedback-rich feel than Diamana. Players who want precision and tight misses but find Ventus too firm often fit well into Tour AD. The best way to determine fit is through launch monitor data, since launch and spin numbers will narrow the choice faster than feel descriptions alone.
